Marking

1.There are three types of laser marking machines available: cabinet type, desktop type, and portable type. 2.Fiber laser marking is widely used across industries such as metal, plastics, electronics, automotive, and medical for high-precision, permanent marking and engraving.

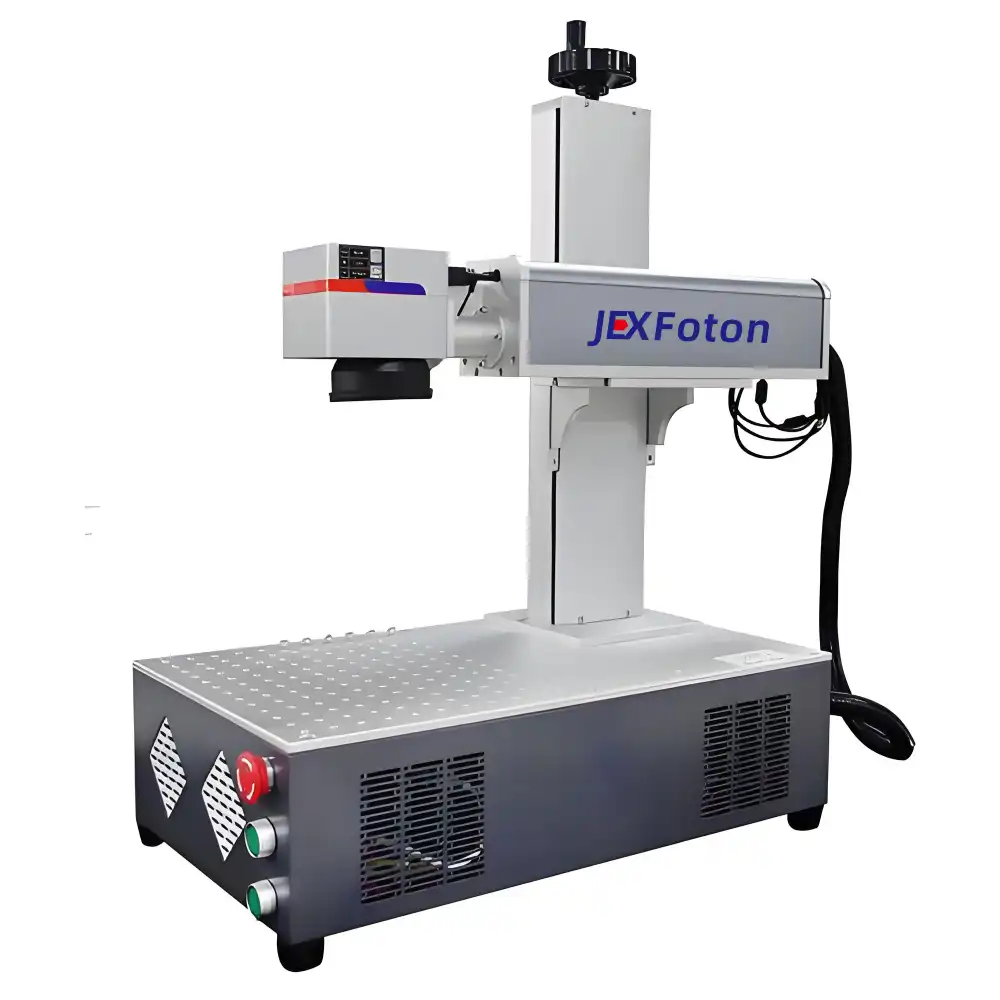

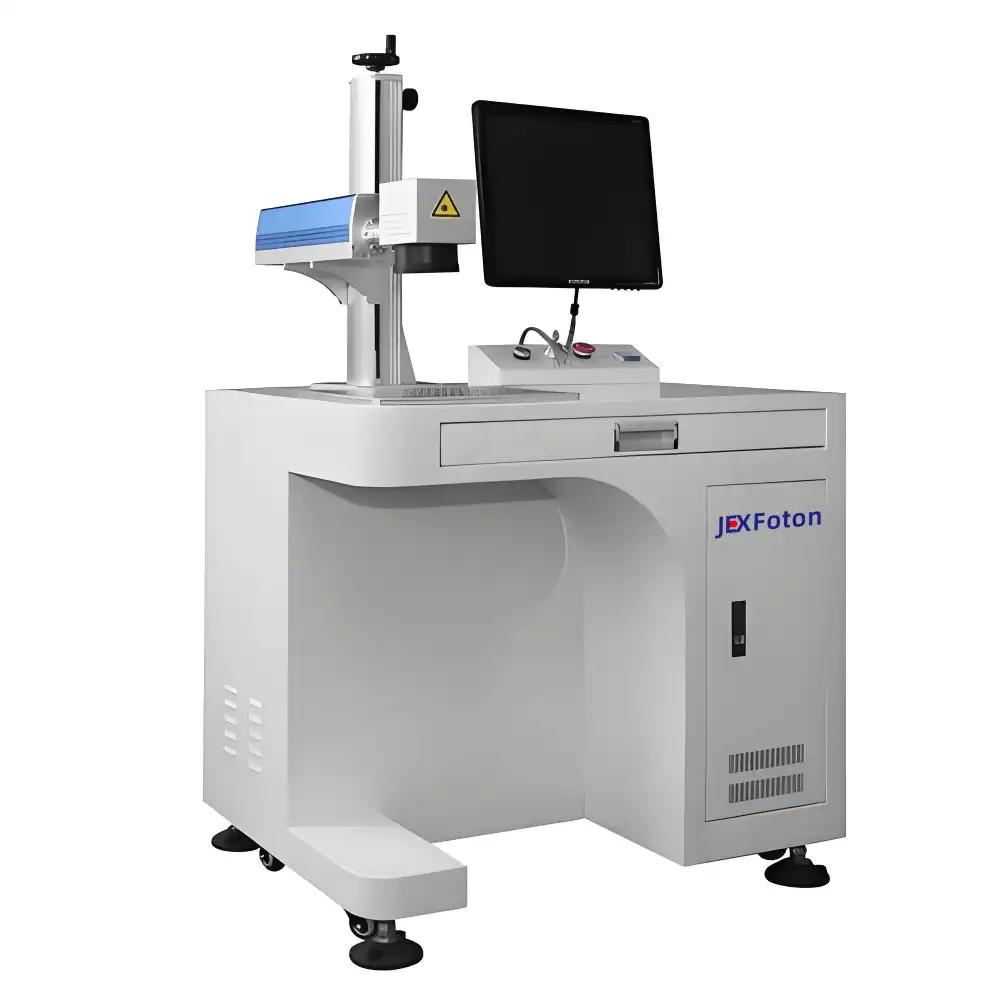

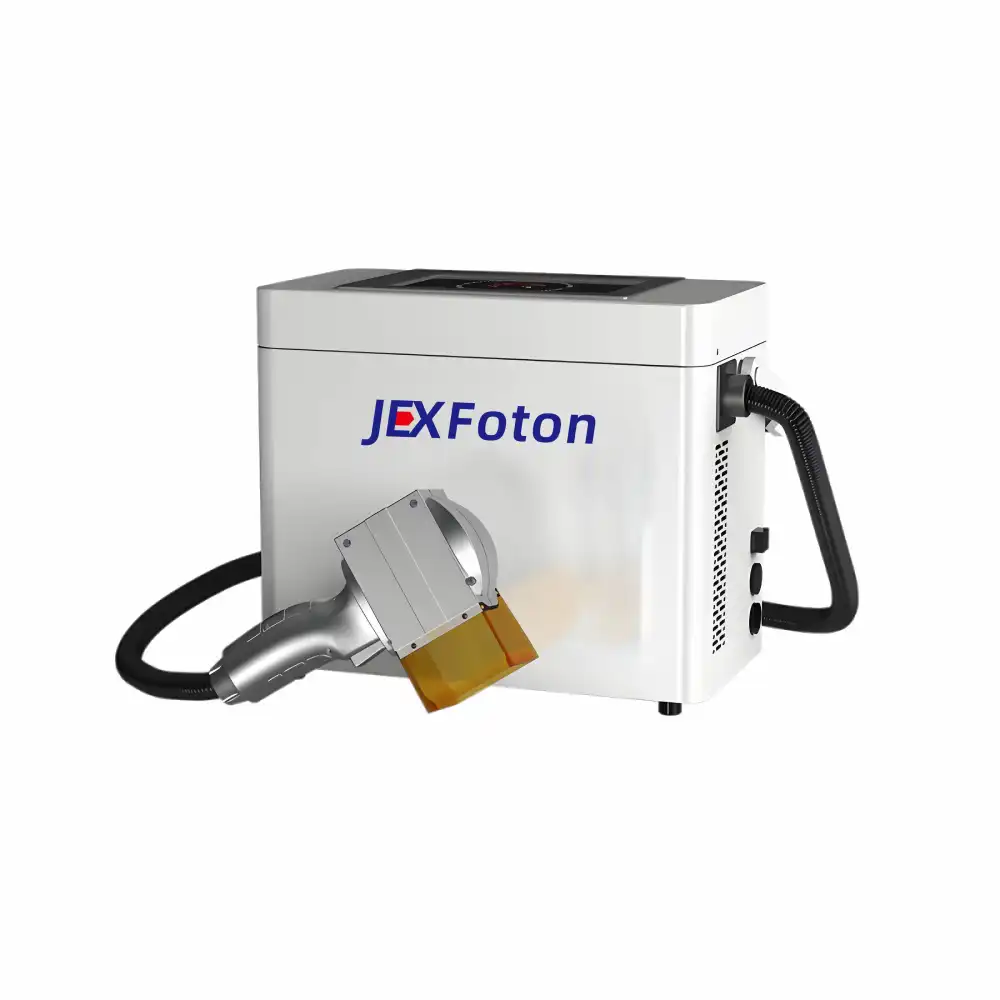

There are three types of laser marking machines available: cabinet type, desktop type, and portable type.
Fiber laser marking is widely used across industries such as metal, plastics, electronics, automotive, and medical for high-precision, permanent marking and engraving.

Product Parameters

Product Type：Cabinet, Desktop, Portable
System：EZCAD , BSL
Location accuraracy：±0.01mm
Minimum Line Width：0.01mm
Power：20W 30W 50W 100W Optional
Marking Area：110*110mm, 150*150mm, 170*170mm, 200mm*200mm, 300mm*300mm Optional
Power Demand：AC220V 50-60HZ
Marking Depth：3.0㎛-5.0mm
Marking Speed：1-5000mm/s
Cooling：Air
Wavelength：1080nm（±10nm）
Minimum Character Size：0.1mm
Frequency：20-100KHz
