BM06K Auto Focus Laser Cutting Head
Price range: $20.00 through $88.00

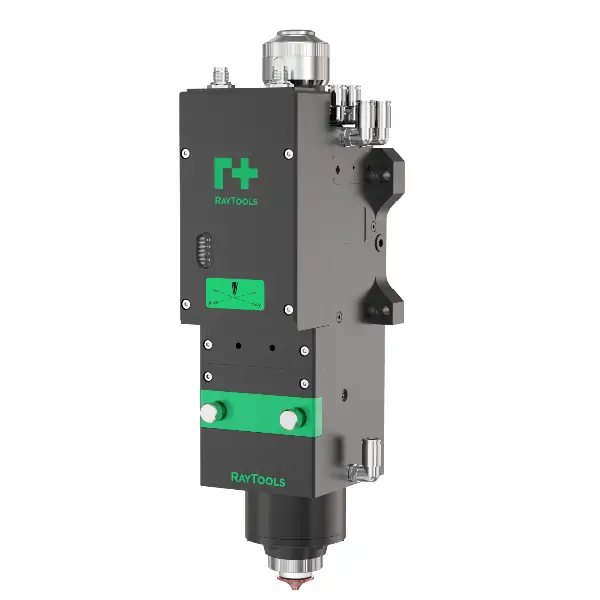

BM06K Auto Focus Laser Cutting Head
BM06K is a medium-to-high power cutting head with a rated power of up to 6 kW. This product is equipped with multiple fiber interfaces including QBH, QD, and G5, allowing compatibility with a wide range of mainstream laser sources. It features a lower protective lens temperature monitoring function, which enables real-time temperature data display via a mobile APP or desktop interface.
| Model | BM06K |
| Power Rating | ≤ 6 kW |
| Fiber Interfaces | QBH, QD, G5 (compatible with mainstream laser sources) |
| Applicable Wavelength | ~1080 nm |
| Numerical Aperture (NA) | 0.14 | ||||
|
| Collimation Focal Length | F100 (100 mm) |
| Focusing Lens Options | F150 / F200 (150 mm or 200 mm) |
| Auto Focus Range | –17 to +17 mm / –32 to +32 mm (depending on configuration) |
| Cutting Gas Port | Φ10, max. 25 bar |
| Cooling Gas Port | Φ8, max. 5 bar |
| Working Voltage | 24 V ±10%, Max 4 A |
| Operating Temperature | 5 °C – 55 °C |
| Operating Humidity | 30 % – 95 % (non-frost) |
| Weight | ~6.5 kg – 7.0 kg |
